To enable the creation of Excel reporting templates in a workspace, a directory structure must exist in this workspace and it must be possible to create the object type Lucanet.Excel-Reporting in this directory structure.

1

Right-click the root folder or a folder in the Workspace configuration and select Create | Directory structure from the context menu.

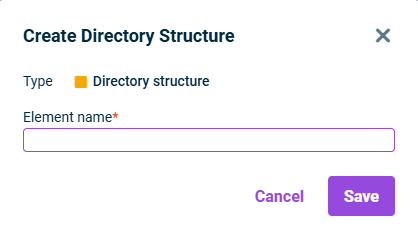

Displays the 'Create Directory Structure' dialog.
Creating a directory structure
2

Enter the name of the directory structure.

3

Click Save.

To add an object of type Lucanet-Excel-Reporting in a directory structure:

1

Click the name of the desired directory structure in the Workspace configuration.

2

Click Edit.

3

Click the Object type column and choose Lucanet.Excel-Reporting from the drop-down list.

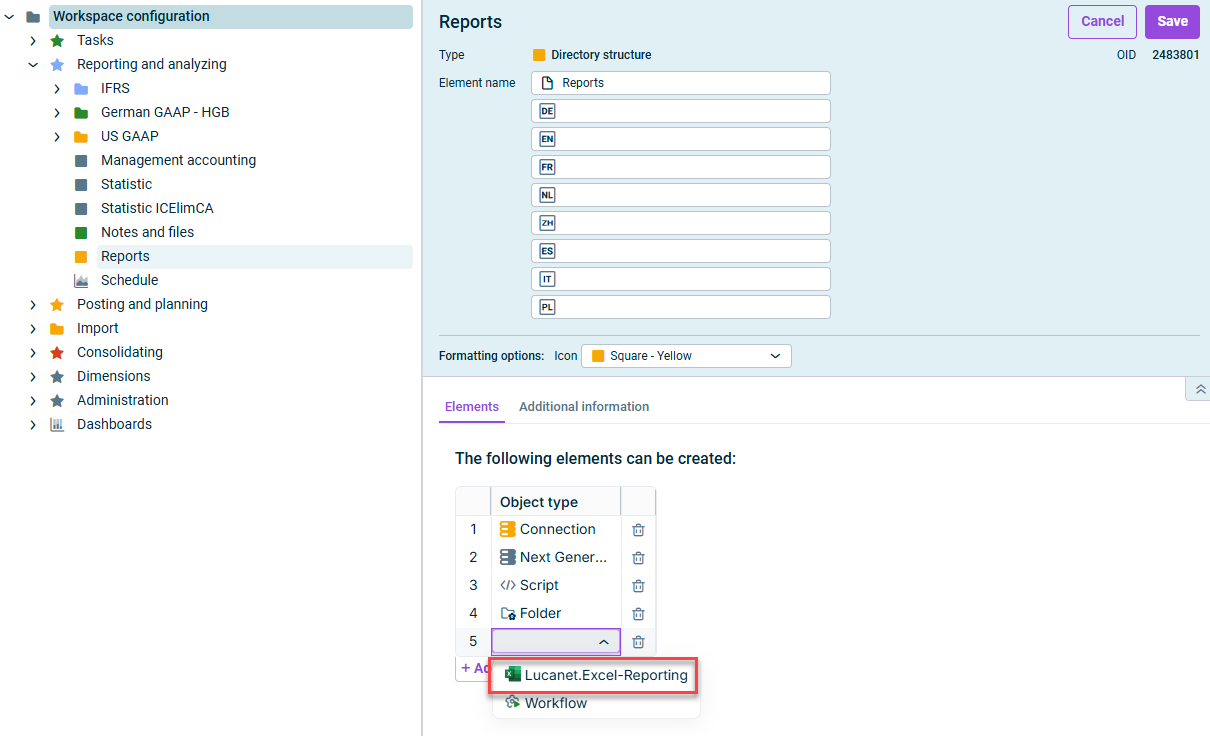

Shows the configuration of the workspaces and, on the right, a detailed view of a directory structure. The object type Lucanet.Excel-Reporting from the ‘Object type’ drop-down list is marked in re
Selecting the object type 'Lucanet.Excel-Reporting'
4

Click Save.

The directory structure is then displayed as a workspace in the overview, and an element of type Lucanet.Excel-Reporting can be created and edited there.
